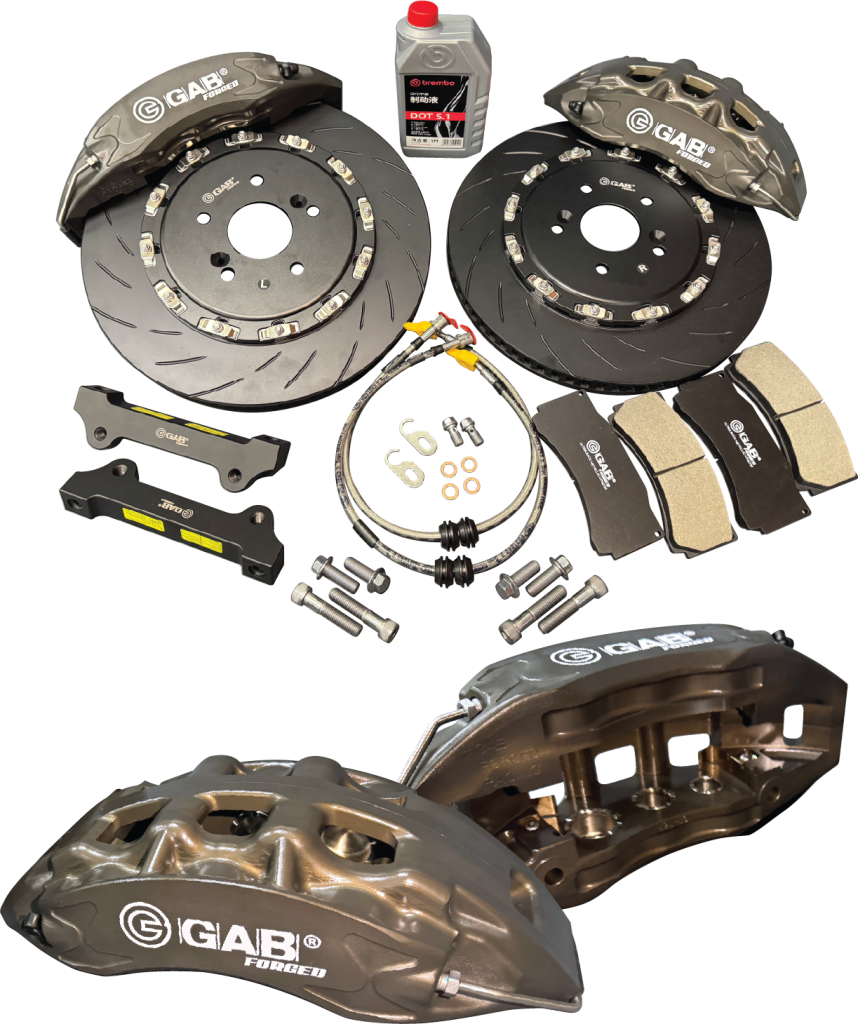

GF-T6R
Brake Kit
GF-T6R
Track Racing Series
| Material | : | Enhanced 6066 Forged Aluminium Block with Strengthened Design |
| Caliper Weight | : | 4.4kg |
| Caliper Dimension | : | 335mm x 150mm x 96mm |
| Mounting Centre | : | PCD 180mm |
| Mounting Size | : | M12 |
| Steel Braided Hose | : | Goodridge |
| Pad Model | : | GF-6 / CP9660 D54 |
| Pad Area | : | 77.4cm² |
| Piston Data | : | 50.2cm² Piston Area ( 6 Stainless Steel + Spring Racing Piston 27mm / 31.8mm / 38.2mm ) |
| Dirt Boot Seals | : | No |
| Centre Bell & Mounting | : | 7075 Aluminium Bell and High Tensile Mount |
| Rotor Material | : | 72 Curved Vanes High Carbon With Black Coat Finishing |
| Disc Diameter | : | 355mm, 380mm (Fully Floating Disc With Heat Dissipated Design) |
| Disc Thickness | : | 34mm |
| Disc Design | : | Special Slotted |
| Wheel Required | : | 18” and 19” |
| Caliper Colours | : | Harden Anodised Black, Red |
